Our Capabilities

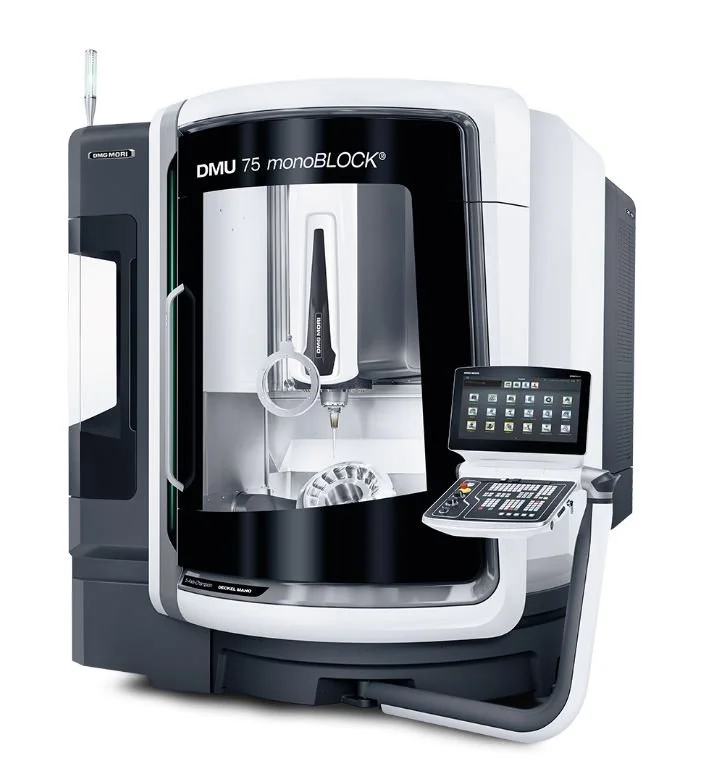

DMG MORI DMU 75 monoBLOCK
5-Axis Machining Center
5-axis machining allows us to approach complex parts from all directions and axes in a single operation, eliminating the need for manual workpiece repositioning. It is ideal for creating highly complex parts requiring precision.
Max. workpiece diameter 33.1 in.
Max. workpiece height 19.7 in.
HSK 63 20,000 rpm spindle

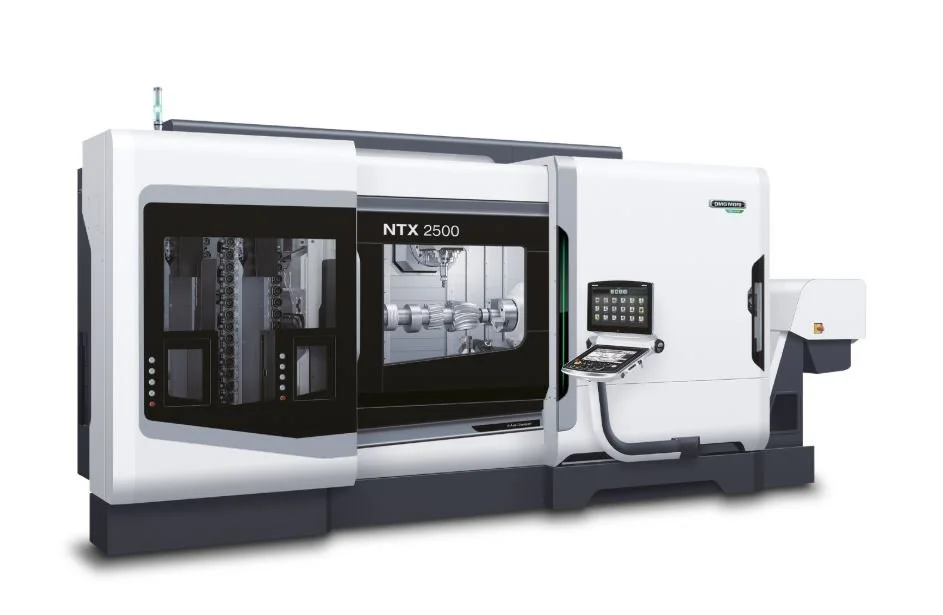

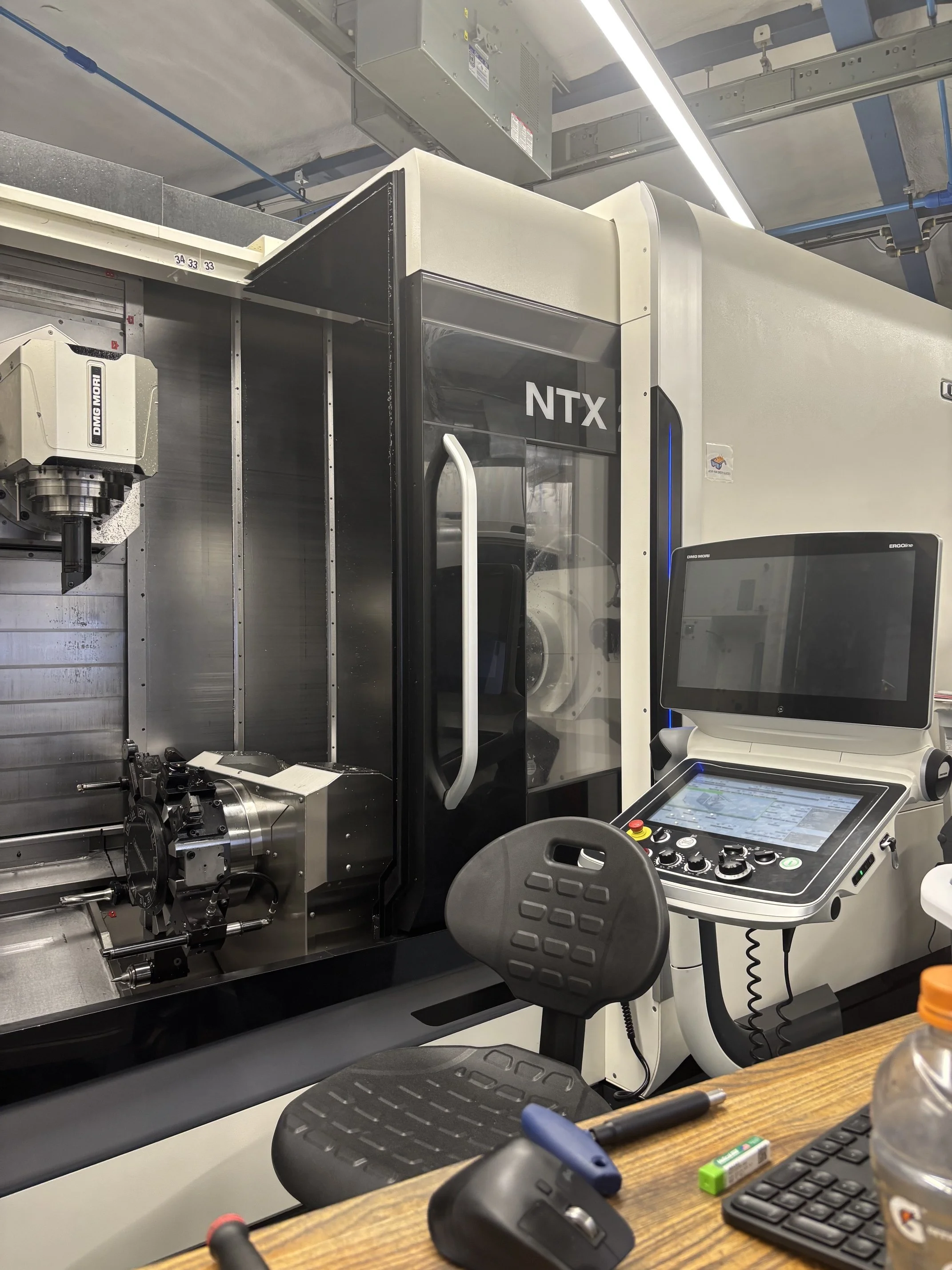

DMG MORI NTX 2500
Multi Task | Mill Turn 9 Axis Machining Center
Our 9-axis CNC combines a 4-axis lathe and 5-axis milling machine. This allows 5-axis milling capabilities to complete surface machining, and a 4-axis turning to complete internal machining. Our NTX 2500 works best for complex designs. We’re able to machine consistently, without changeover, maintaining accuracy and tolerance in even the most stringent specifications.
Capto C6 20,000 b-axis milling/turning spindle
12 station lower turret with y axis & 10,000 milling spindle
4,000 max rpm main and sub spindle
Max. workpiece diameter 26.4 in.
Max. workpiece length 60.2 in.
Max. bar diameter 3.1 in.
Max. X-axis travel 26.6 in.
Max. Y-axis travel 11.8 in.
Max. Z-axis travel 61.5 in.

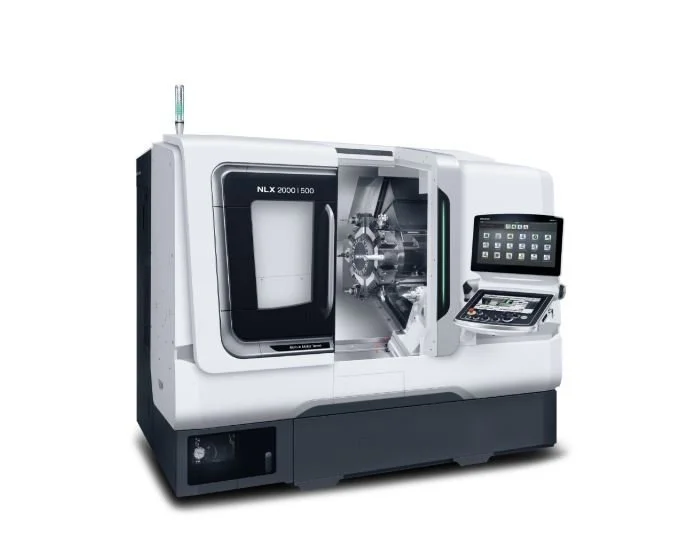

DMG MORI NLX 2000|500
Turning Center With Live Tooling

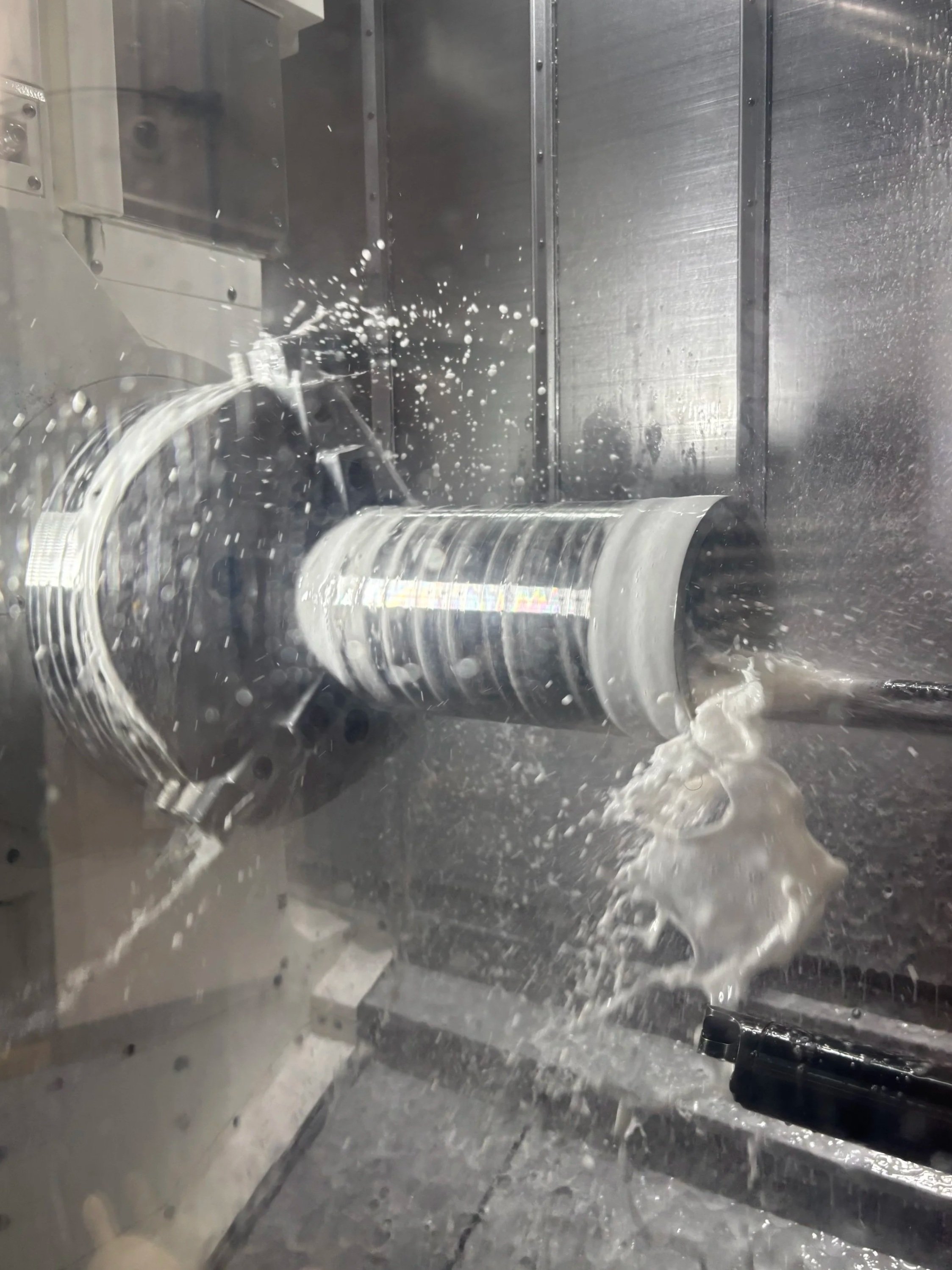

Our NLX 2000I500 lathe allows us to turn parts on a main and sub spindle with live tooling to mill features without re-fixturing the workpiece. We are able to bar feed and unload for production quantities.
Max. workpiece diameter 14.4 in.
Max. workpiece length 20.1 in.
Max. bar feed diameter 2.6 in.
Max. X-axis travel 10.2 in.
Max. Y-axis travel 3.9 in. (+/- 1.95 either direction)
Max. Z-axis travel 23.2 in.

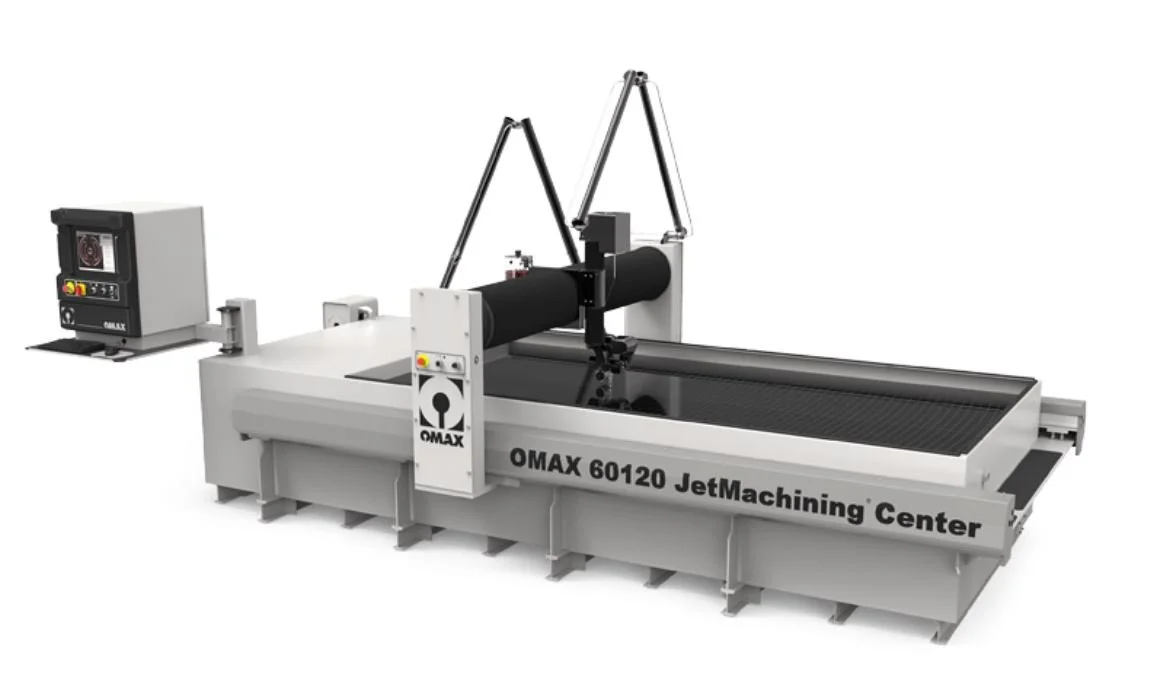

OMAX 60120 WATERJET
Cutting envelope of 10' 6" x 5' 2" (3.20 m x 1.57 m)
Linear position accuracy +/- 0.001" (+/- 0.025 mm)
Cuts: Steel, Aluminum, Titanium, Bronze, Plastics, Granite, and more
Abrasive waterjets can cut through 12 inches of most materials. Optimal finish and tolerances are achieved on material that is 3 inches thick or less.
